Refrigerated compressed air dryer

Working conditions and design parameters

SSW series refrigerated compressed air dryer, heat exchanger assembly and air conditioner are made of 304S stainless steel, with high heat transfer efficiency, anti-corrosion and anti-rust, avoiding secondary pollution to gas quality。

Cooling method: air cooling

Processing gas volume:1-65.0m³/min

Refrigerants:R134A\R410A\R407C

Intake pressure:7 bar
Working pressure: 16 bar
Pressure loss: 0.2 bar
Pressure dew point: 3℃～5℃@PDP
Intake air temperature: 3℃～65℃
Ambient temperature: 3℃～50℃
Intake air temperature: 65℃

Features

◆ Strong dehumidification, the water content of compressed air is lower than similar products on the market, the pressure dew point is 3-5℃;

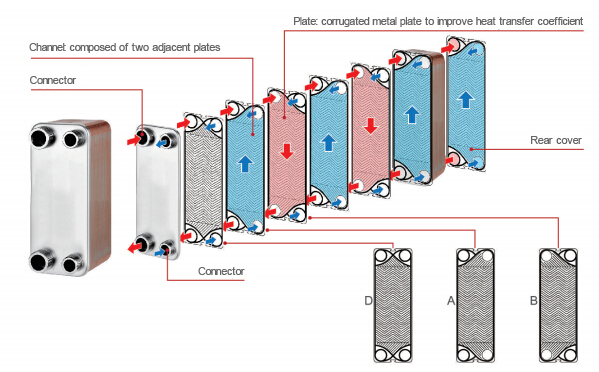

◆ Stainless steel plate heat exchanger and air connecting pipe.
◆ 35db low noise and low vibration;
◆ Energy-saving, fully-sealed compressors use environmentally friendly refrigerants (R134a, R410A or R407C).
◆ Small size, compact structure, saving installation control;
◆ Digital display controller.

Correction factor of SSW series frozen compressed air dryer

Intake air temperature
Intake pressure(bar)
Ambient temperature

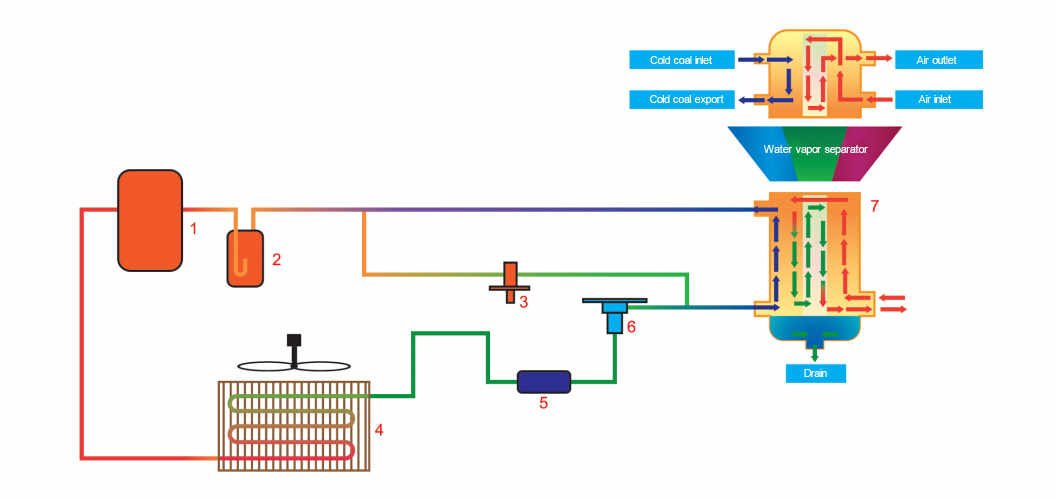

Technical process

1. Refrigerant compressor
2. Oil-gas separator
3. Hot gas bypass valve
4. Condenser
5. Dry filter
6. Thermal expansion valve
7. Stainless steel plate heat exchanger

HSWTechnical parameters of series refrigeration air dryer

Product number	Processing gas volume	Compressor power	power supply	Air takeover	Dimensions（mm）			equipment weight
Product number	Nm³/min	KW	V/Ph/Hz	caliber	long	width	high	KG
SSW-06HTF	0.6	0.5		Rc1"	450	250	420	27
SSW-14HTF	1.4	0.8		Rc1"	500	300	525	32
SSW-18HTF	1.8	0.9		Rc1"	520	440	680	50
SSW-24HTF	2.4	1	110/115/220	Rc1"	520	440	680	52
SSW-38HTF	3.8	1.25	/1/50(60)	1.5	680	490	830	68
SSW-65HTF	6.5	1.5		1.5	680	500	830	78
SSW-85HTF	8.5	1.8		1.5	680	500	830	82
SSW-107HTF	10.7	2.5		2	1180	650	955	140
SSW-135HTF	13.5	2.5		2	1180	650	955	147
SSW-180HTF	18.0	3		DN65	1180	650	955	169
SSW-250HTF	25	5	220/380/415/440	DN80	1470	700	1360	230
SSW-350HTF	35	6.5	/3/50(60)	DN100	1800	900	1810	370
SSW-450HTF	45	8.8		DN100	1900	900	1810	590
SSW-550HTF	55	12		DN125	2400	1400	1900	730
SSW-650HTF	65	15		DN125	2500	1420	1995	860
